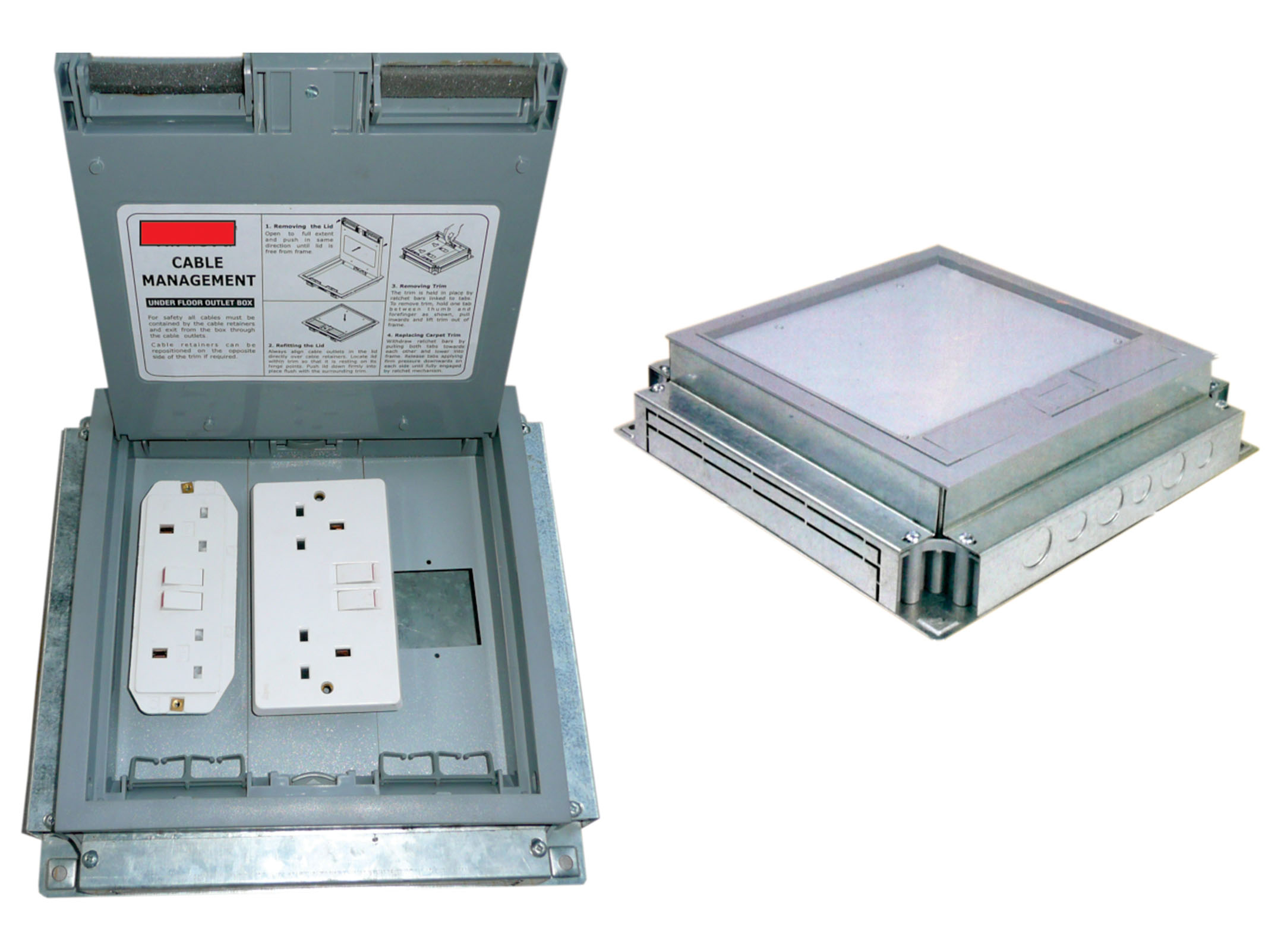

UNDER FLOOR BOXES FOR CABLE MANAGEMENT SYSTEM :
Under Floor Trunking System :
It is designed for use in a screed floor application where the trunking is buried in the screed.
Available in 2 or 3 compartments with all accessories including service outlet box , junction boxes , vertical access box, end cap, etc. with ABS Polymied lid and junction boxes for the istribution of power, voice and data services.
150 x 150
250 x 250

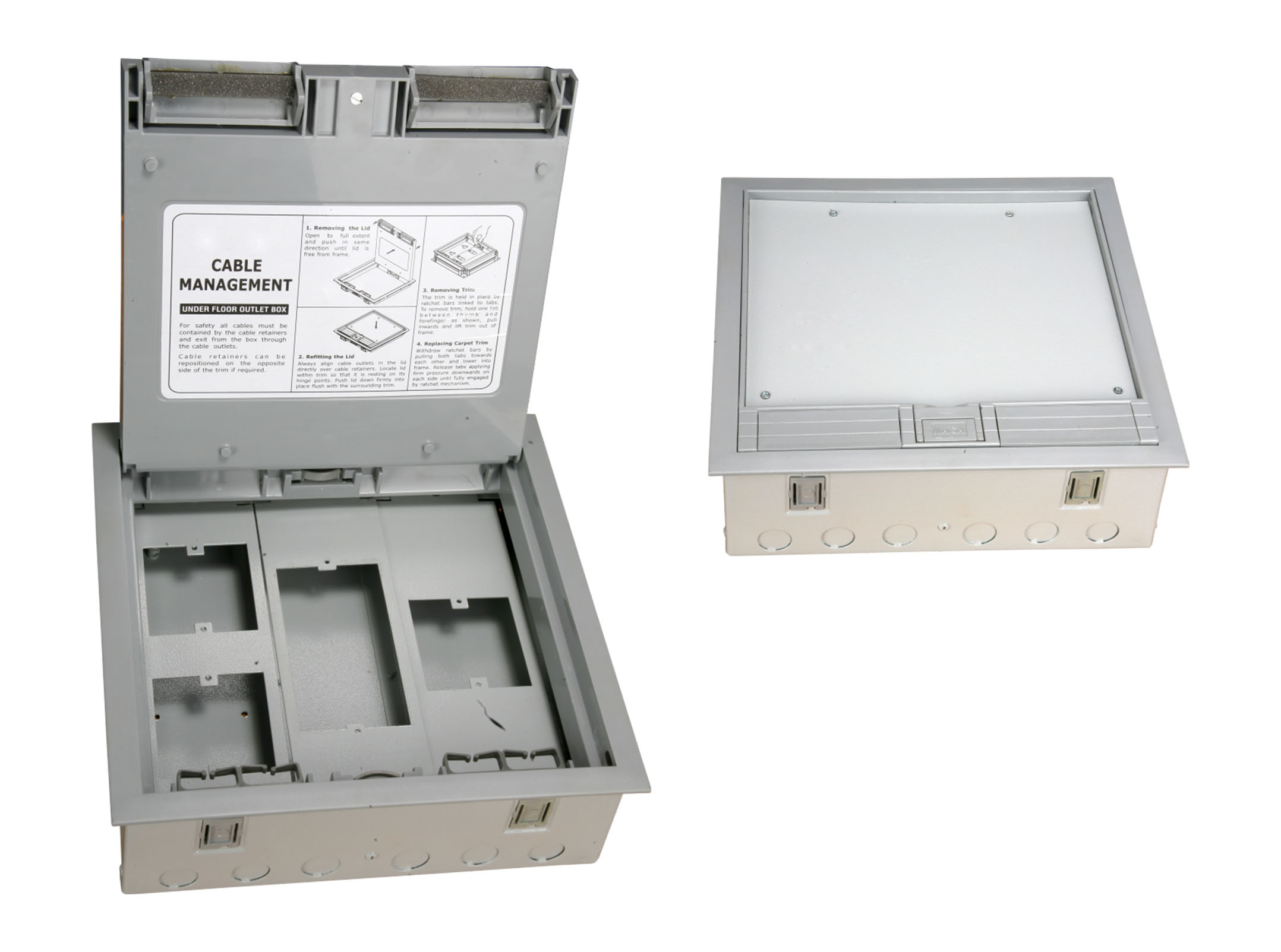

RAISED UNDER FLOOR BOXES FOR CABLE MANAGEMENT SYSTEM :
Raised Floor Boxes :
It is designed for use in a raised floor installation for the distribution
of power, voice & data.
It comes complete with Quick Release Cover for easy installation
and maintenance.
Two or Three compartment service outlet boxes accepts a wide range of power, voice & data socket plates.
150 x 150
250 x 250
RAISED UNDER FLOOR BOXES FOR CABLE MANAGEMENT SYSTEM

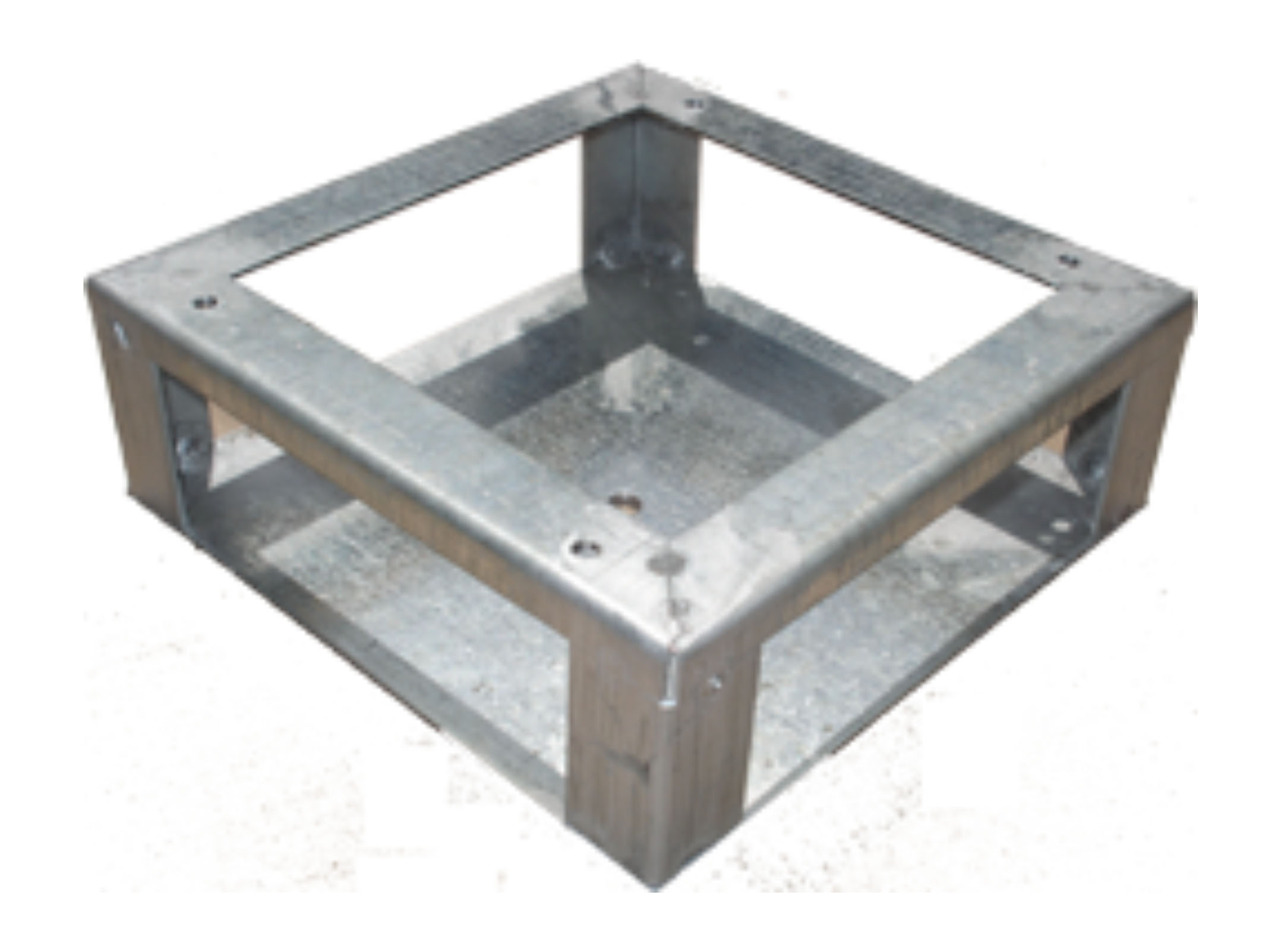

CONVENTIONAL FLOOR BOXES FOR CABLE MANAGEMENT SYSTEM :
Conventional Floor Boxes :
Material : Galvanised Steel
Thickness :
1.6 mm upto 12"
2.0 mm above 14"
These floor boxes are also available with powder coating on specific requirement.
Range :
6” x 6”
8” x 8”
10” x 10”
12” x 12”
14” x 14”
16” x 16”
18” x 18”
CONVENTIONAL FLOOR BOXES FOR CABLE MANAGEMENT SYSTEM

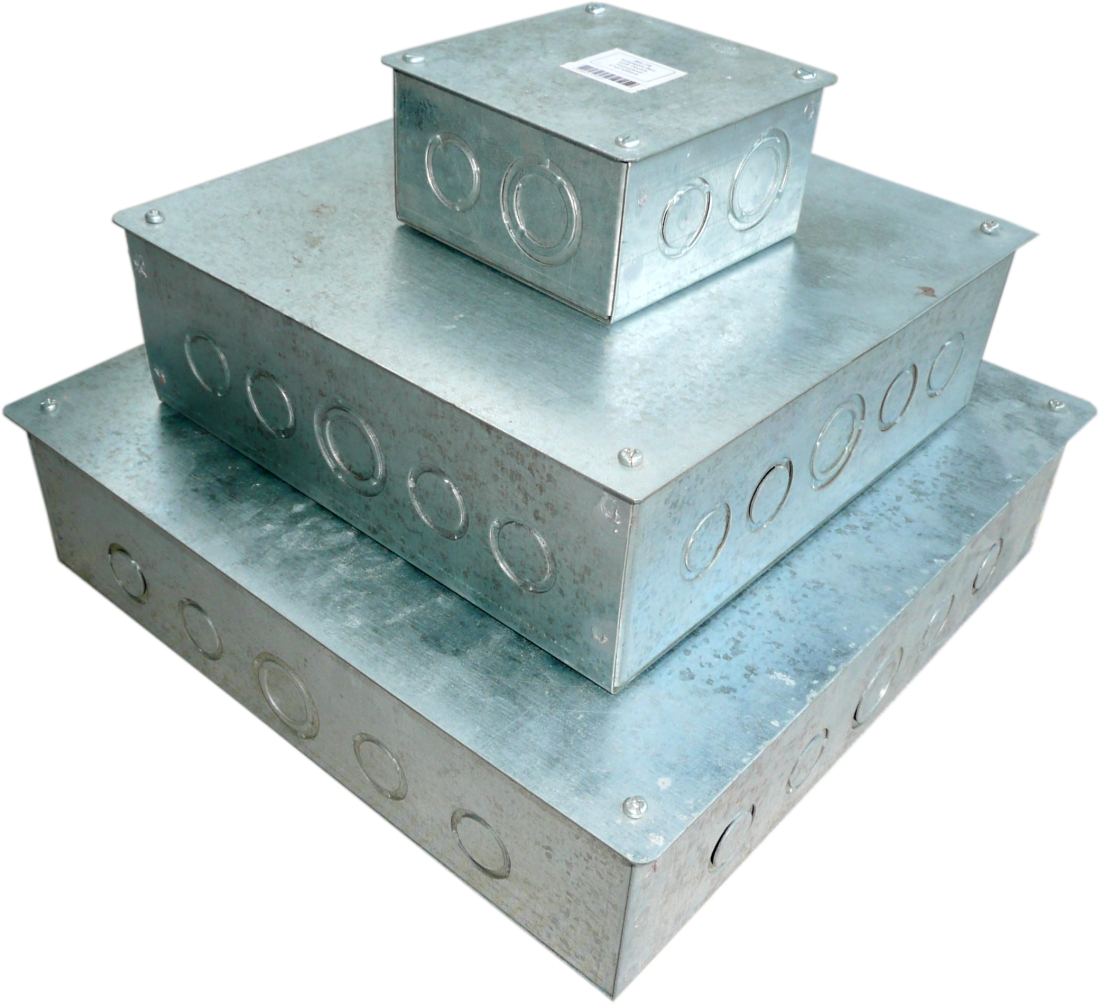

ADAPTABLE BOXES :
Recommended Use :
This range of Heavy Duty Steel Adaptable Boxes can be used as a junction box for installation with electricals conduits ranging from 20mm up to larger 150mm diameter. As the boxes are supplied w/o knockouts, users are required to drill the required holes according to needs on site.
The boxes can be supplied with a rubber gasket to convert it and improve the IP rating to IP54 if necessary. It can also serve as an utility junction box for wiring connection purposes.
- Standard : BS4658
- IP Rating : 40
- Material : Pre Galvanized Steel
-
Finish :
Powder Coated
Pre Galvanized
Hot Dip Glavanized - Range :
- 2” x 2” x 2” , 3” x 3” x 3” , 4” x 4” x 3” , 6” x 6” x 3” , 9” x 9” x 3” , 12” x 12” x 3”
A PART OF OUR EXPORT RANGE, MFG. UNDERTAKEN LOCALLY AGAINST SPECIFIC QUANTITY ORDER ONLY.
Any tailor made sizes on specific request are available as per customer requirement.
ADAPTABLE BOXES

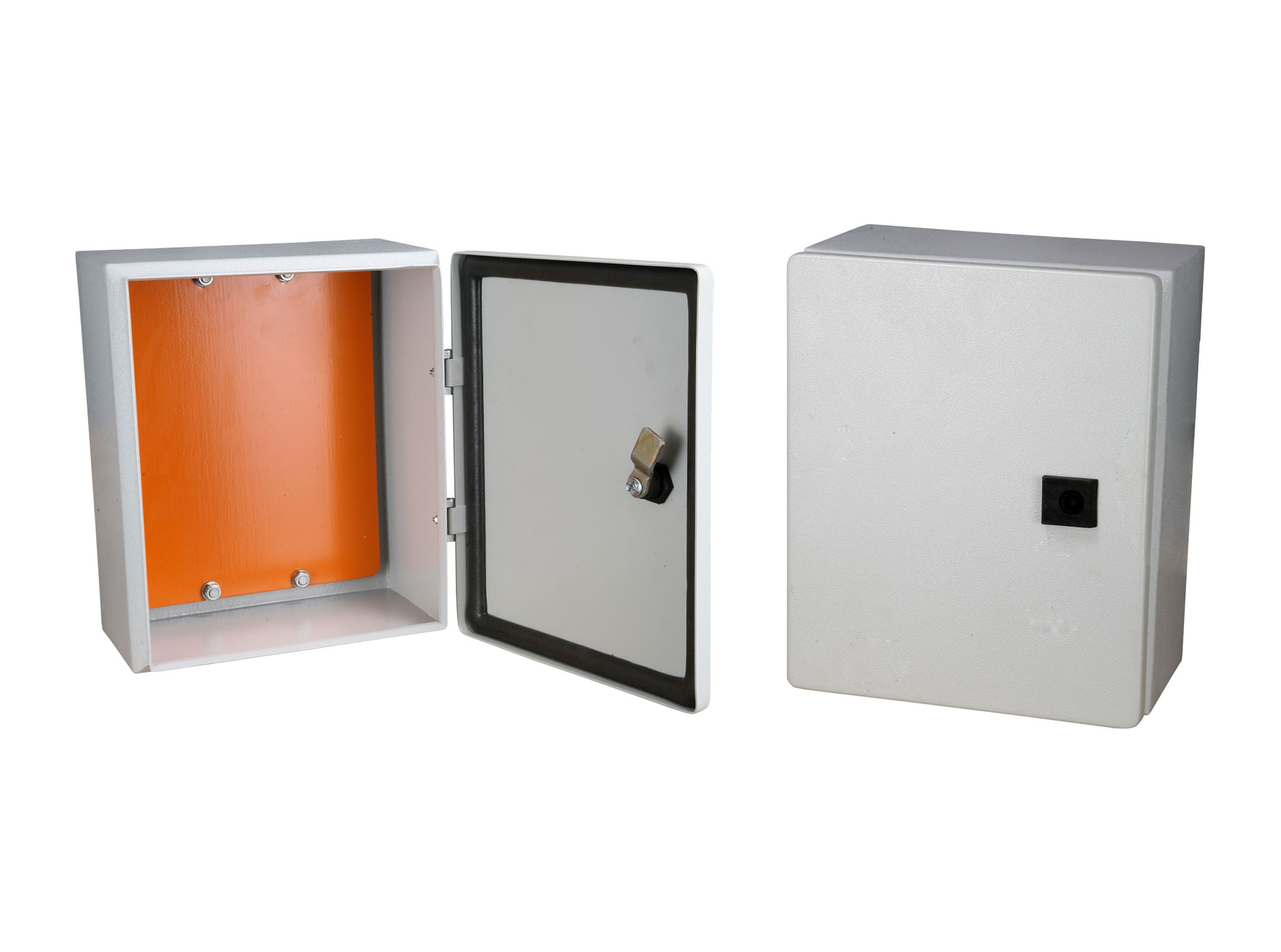

ENCLOSURE BOX :
Surface Finish :
Enclosure and Door Dipcoat Primed & Powder Coated on the outside in textured RAL 7035.
Mounting Plate : Zinc Plated
Also available in Stainless Steel.
Protection Category :
IP 66
Supply Includes :
Enclosure of all round solid Construction, Single Door, 1 Gland Plate in the Enclosure Base, r/h Door Hinge, may be swapped to opposite side, with one cam lock formed in door seal, mounting plate.
Material :
Sheet Steel
Stainless Steel
ENCLOSURE BOX

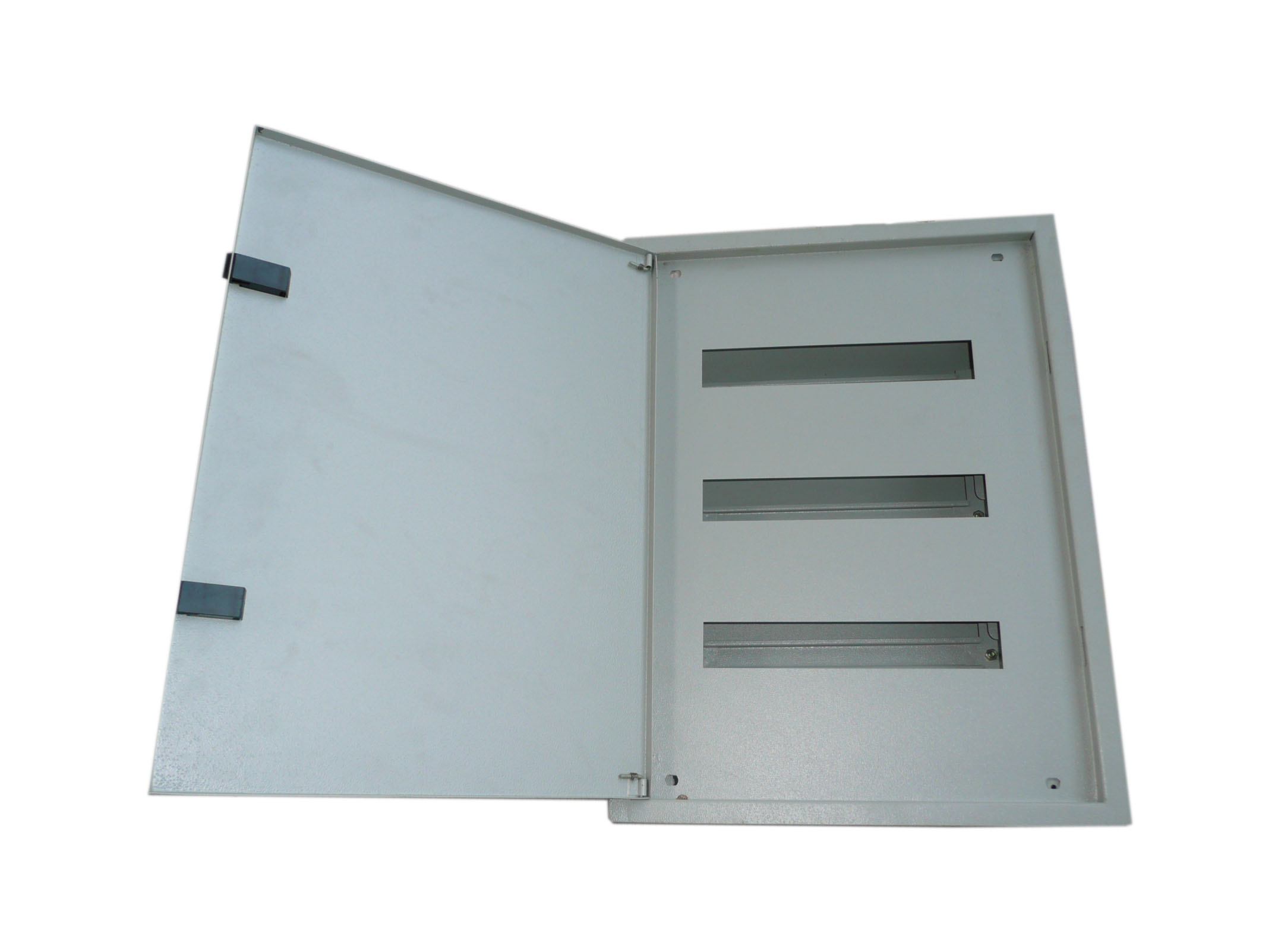

ROW DISTRIBUTION BOARD :
Material : Pre Galvanized Steel
Finish :
Powder Coated (RAL 7035)
Range :
1 Row DB
2 Row DB
3 Row DB
4 Row DB
5 Row DB
ROW DISTRIBUTION BOARD
SCREW FIX ENCLOSURE BOX :
Material :
Sheet Steel, Stainless Steel
Protection Category :
IP 66
SCREW FIX ENCLOSURE BOX

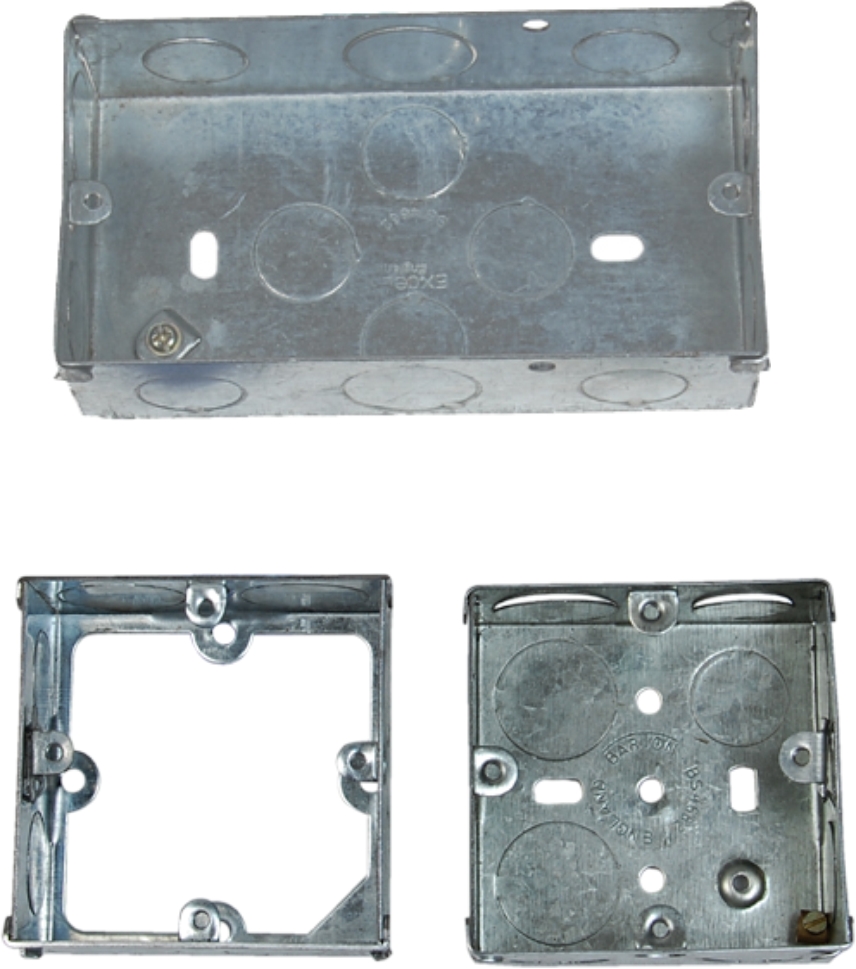

ELECTRICAL ACCESSORIES BOX AS PER BS STD :
Junction Boxes are available in depths of 35mm (normal depth) and 47mm (deep pattern). It is manufactured in strict accordance to BS4662 requirement with at least one adjustable lug and one regulation earth terminal and mix of 20/25mm Knockout holes. Special non-standard boxes according to specification on buyer’s request are also undertaken for manufacturing.
- Material :
- GP Steel 0.8mm and 1.2mm thickness (BS4662:1970)
- Finish :
- Plain, Pre - Galvanized Steel
- 1 Adjustable Lug
- 1 Regulation Earth Terminal
- Range :
- 3” x 3” x 15mm
- 3” x 3” x 25mm
- 3” x 3” x 35mm
- 3” x 3” x 47mm
- 3” x 6” x 35mm
- 3” x 6” x 47mm
ELECTRICAL ACCESSORIES BOX AS PER BS STD

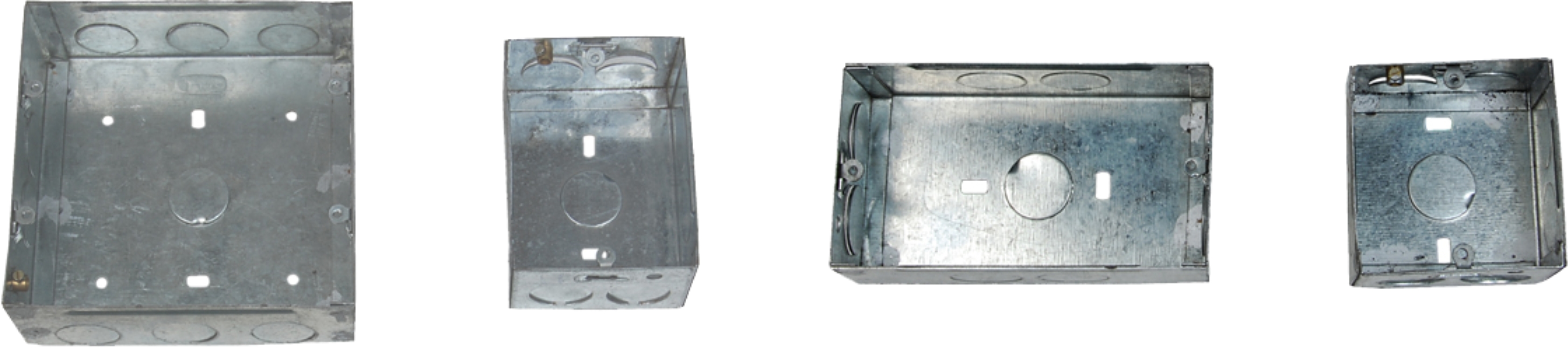

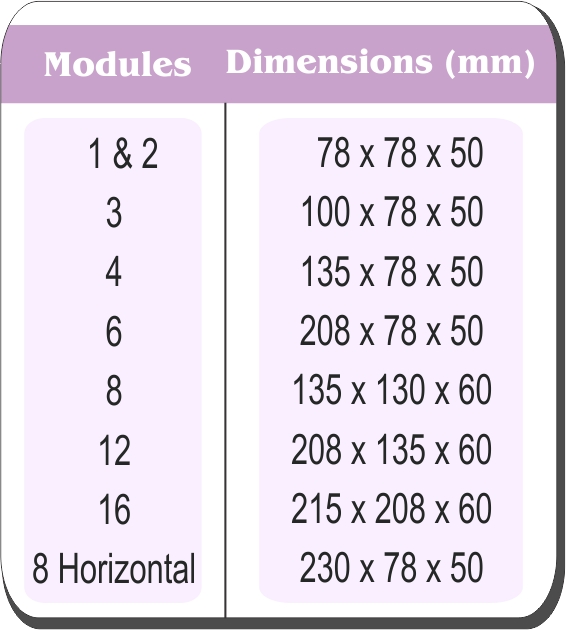

METAL BOXES FOR ELECTRICAL ACCESSORIES
The hooks of the boxes are drawn from 16/18/20 swg GP
sheet by the virtue of which there are more turnings on it
as such inspite of maintenance, the problem of screw
slipping through the hook may not occur and the
aesthetics of the modular plates shall be maintained.
Proper earthing terminal is being plugged in all the
mounting boxes to complete the box with all safety
consideration.
Boxes are manufactured suitable for almost all the major
electrical accessories manufactured in India.
