Trunking / Raceway
What does Raceways mean
A Raceway is an enclosed conduit that forms a physical pathway for electrical wiring. Raceways protect wires and cables from heat, humidity, corrosion, water intrusion and general physical threats. These Cable Raceways are completely perfect for management of wire in computer and communications rooms as well
| Raw Material | : | Hot Rolled MS Sheet / GI Sheet / Stainless Steel / Aluminium |
| Finish Products | : | Pre Galvenised / Hot Dip Galvenised / Powder Coated |
| Thikness | : | 1 mm to 2.5 mm |
| Width | : | 50 mm To 1000 mm |
| Height | : | 25mm To 150 mm |
| Inner Flange | : | 12mm , 15mm, 20mm, 25mm |
| Length | : | Standard Length 2500 mm / 3000 mm |
| Compartment | : | Single, Multiple Compartments |
| Remark | : | Tailor made sizes on specific request are available as per customer requirement |

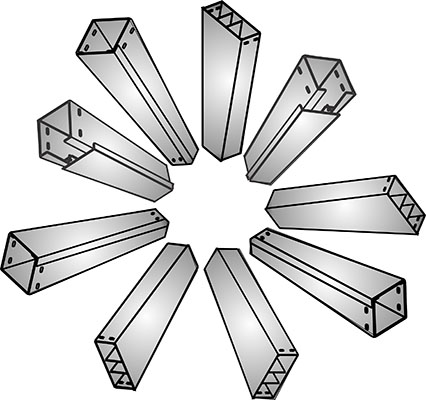

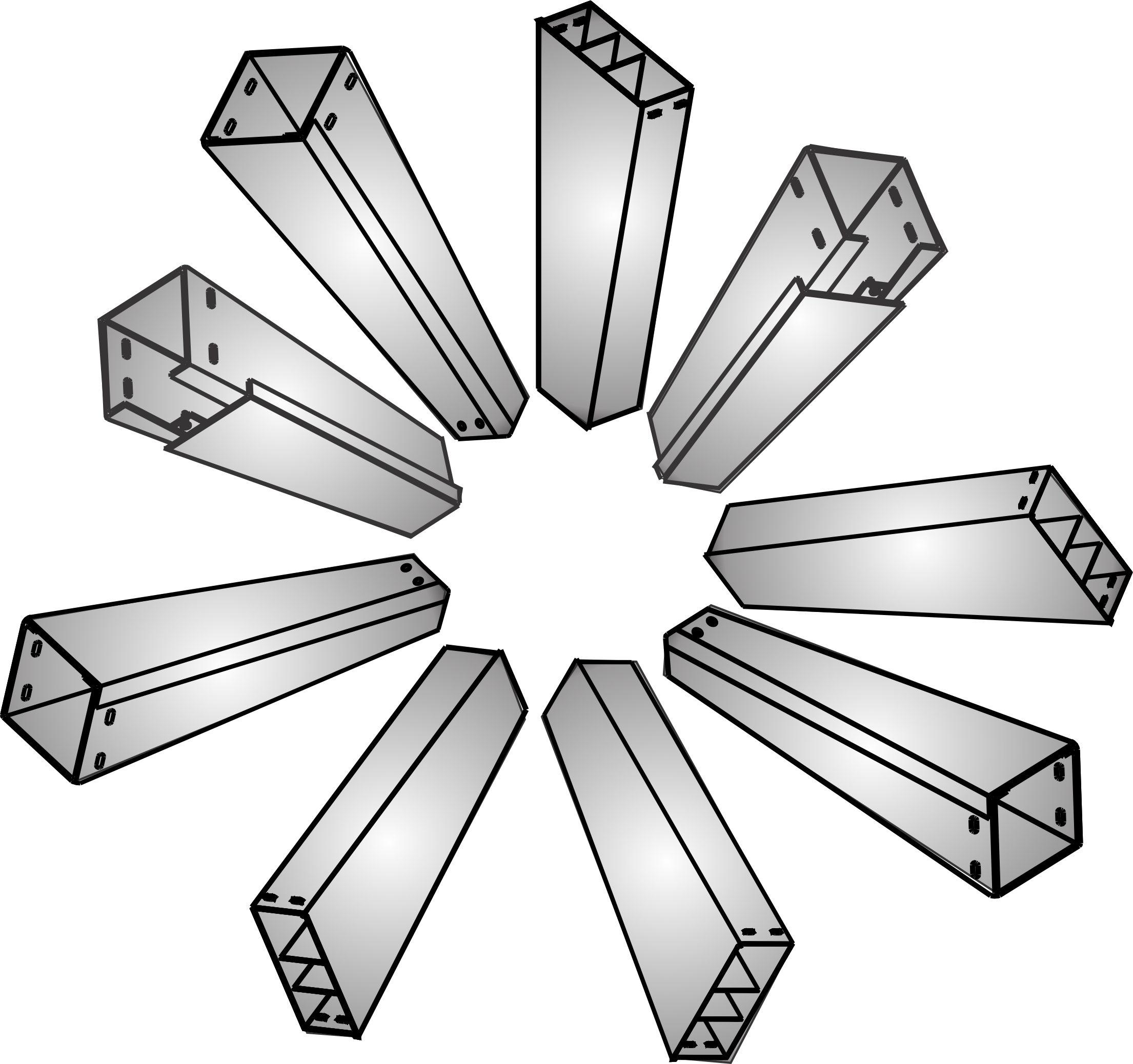

- Standard Trunking / Raceways
- Multi Compartment Trunking / Raceway
- Screw Fix Cable Trunking
- Self Locking Trunking

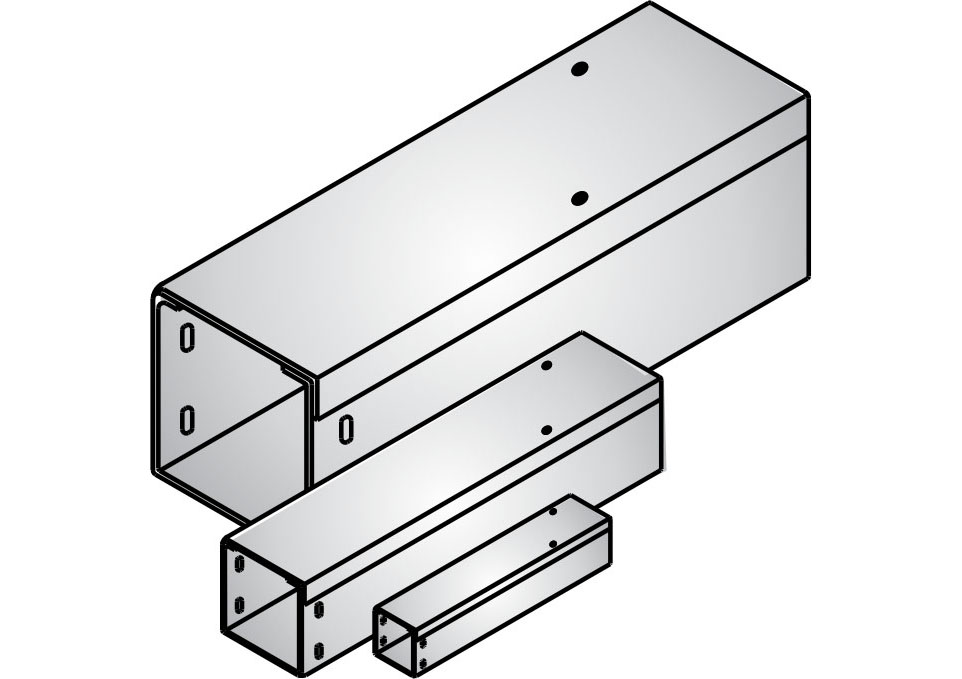

Standard Trunking / Raceways :
Standard trunking is made with single compartment.
Multi Compartment Trunking / Raceway :
Multi Compartment Trunking is made with 2 & 3 compartment size is made of equal standard size unless otherwise demanded by the customers, Partitions are spot welded / Revated into position to produce necessary compartments.
Multi Compartment Trunking / Raceway

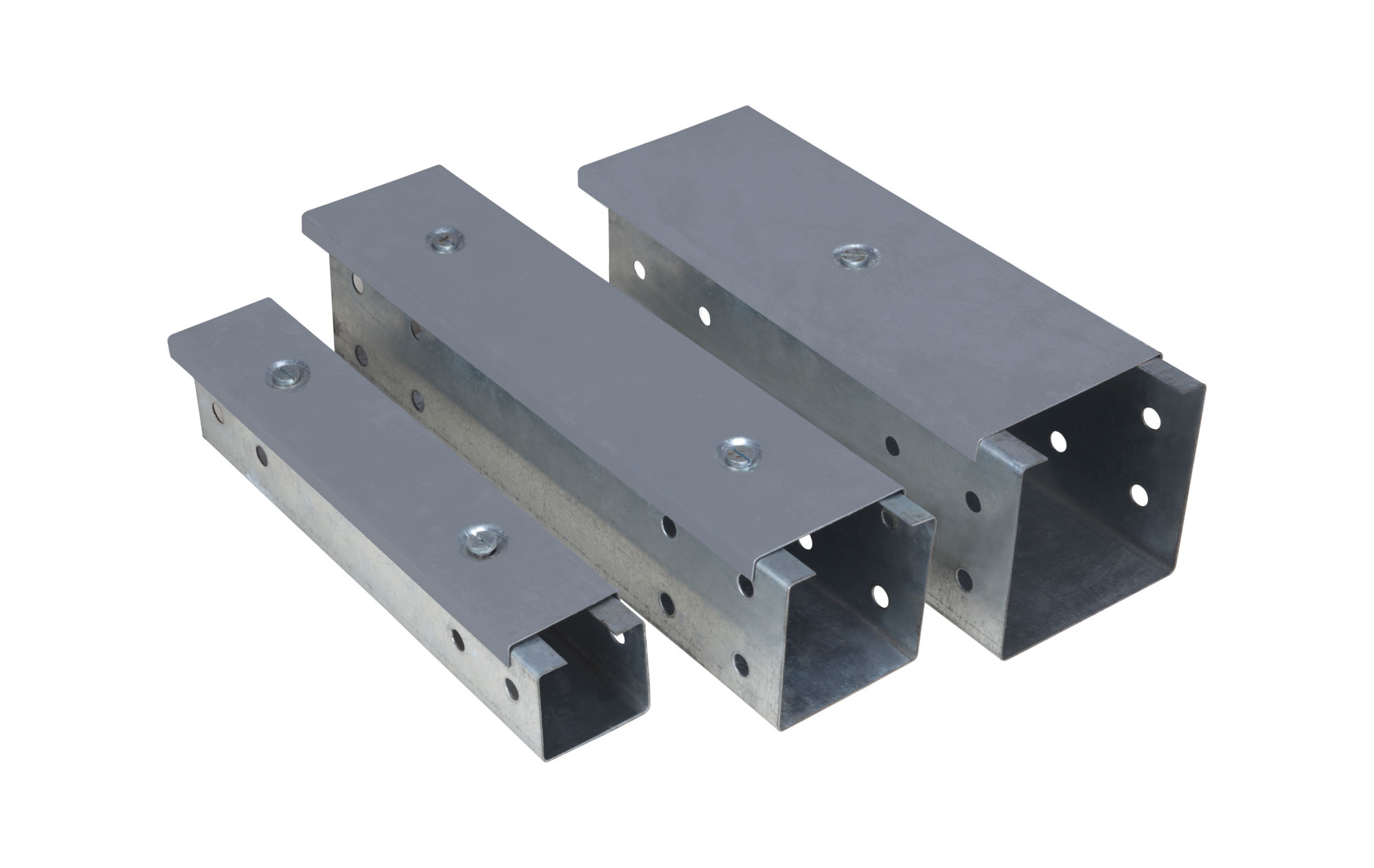

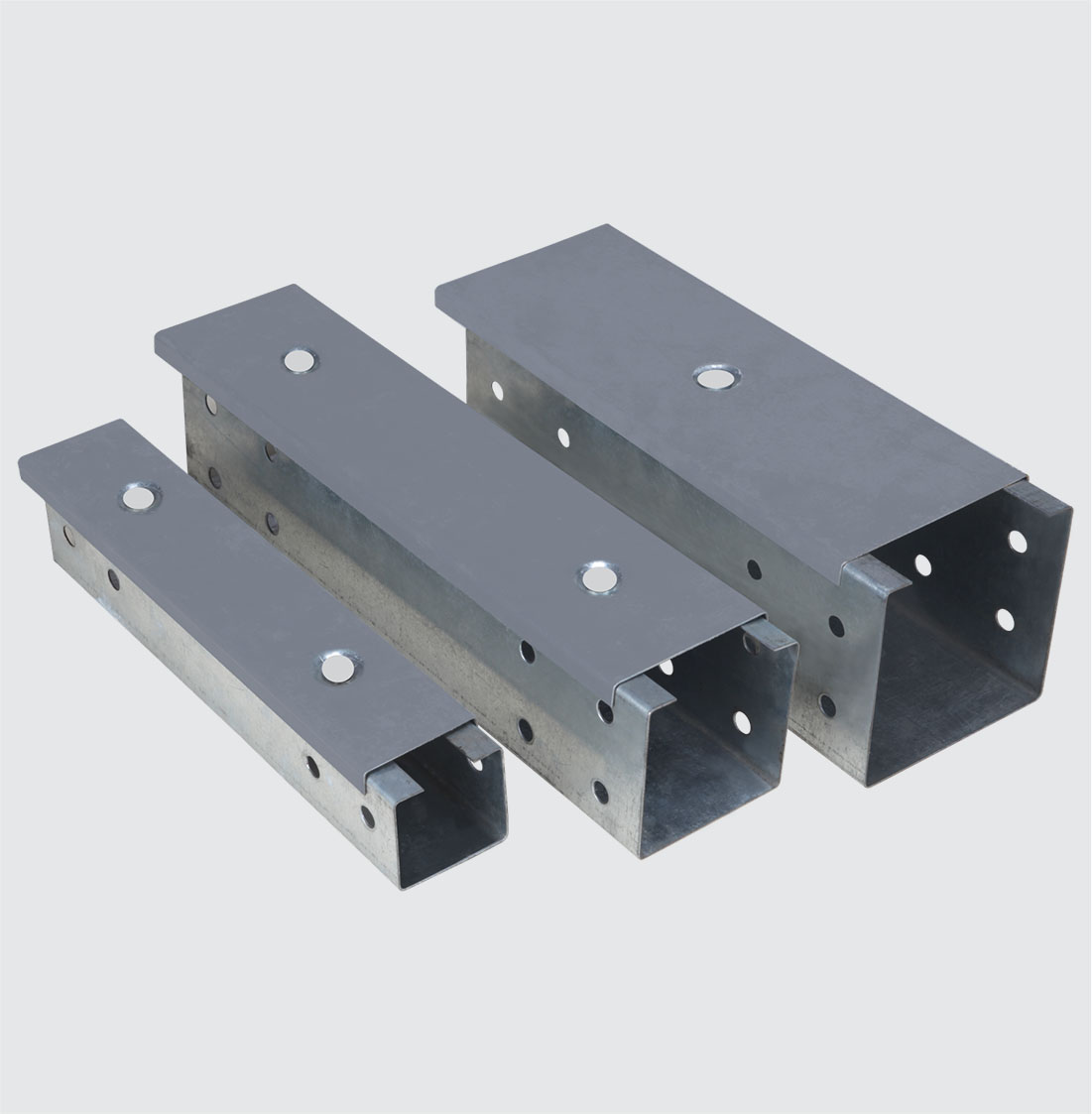

Screw Fix Cable Trunking :
Screw Fix Trunking cover are secured by a screw which is fitted to the tapped hole on return edges of Trunking.
Screw Fix Cable Trunking
Self Locking Trunking :
Self locking Trunking covers with revates are easy to fix and installed
under any Conditions.
A quick fix trunking are supplied along with quick release cable trunking which only require a quarter turn to provide an efficient fastening and quick release.
