Ladder Tray
As Per the National Electrical Code, a cable tray system is "a unit or assembly of units or sections and associated fittings forming a rigid structural system used to securely fasten or support cables and raceways.”
What does Ladder Tray Type Cable Tray mean?
- Ladder trays support cable the way that roadway bridges support traffic.
- A bridge is a structure that provides safe passage for traffic across open spans.
- Ladder tray is the bridge that allows for safe transport of wires across open spans.
- Therefore, think of Ladder cable tray as the structural component of a building's electrical system
| Raw Material | : | Hot Rolled MS Sheet / GI Sheet / Stainless Steel / Aluminium |
| Finish Products | : | Pre Galvenised / Hot Dip Galvenised / Powder Coated |
| Thikness | : | 1.6 mm to 3 mm |
| Width | : | 50 mm To 1000 mm |
| Length | : | Standard Length 2500 mm / 3000 mm |
| Channel Hight | : | 50 mm To 150 mm |
| Rung Size | : | 35x20, 35x15, 40x15, 50x15 |
| Remark | : | Tailor made sizes on specific request are available as per customer requirement |
- HORIZONTAL BEND/ELBOW
- EQUAL TEE/UNEQUAL TEE
- CROSS
- LEFT HAND REDUCERS
- RIGHT HAND REDUCERS
- INSIDE RISER
- OUTSIDE RISER

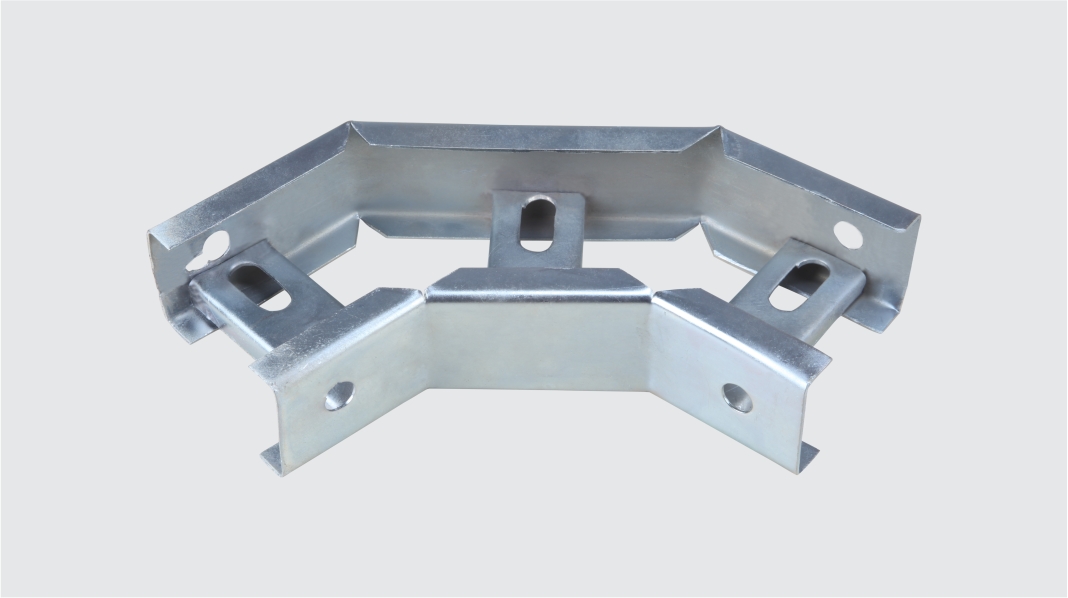

HORIZONTAL BEND / ELBOW :
Are mainly use in combination with perforated type of cable trays to route the cables in Various degree where two wall are conjoining. Our product design allows the cable to route properly and bend take care of cable not to worn out, peel off or get damage while laying of cables.
| Finish Products | ||
| Hotdeep Galvanized | : | As per IS-2626/2633/4759/6745 |
| Pre Galvanized | : | As per IS-277 |
| Powder Coating | : | As per IS-101 |
| Stainless Steel | : | As per Grade 304, 316 |
| Aluminium | : | Commercial Grade |
| Sizes | ||
| Channel Hight | : | 50x15mm, 75x15mm, 100x15mm, 150x15mm, 100x25mm, 150x25mm |
| Rungs Size | : | 35x15mm, 35x20mm, 40x15mm, 50x15mm |
| Radious | : | R300, R600, R1200 |
| Degree | : | 450, 600, 900 |
| Thikness | : | 1.6mm, 2mm, 2.5mm, 3mm |
| SWG | : | 16 14 12 10 |

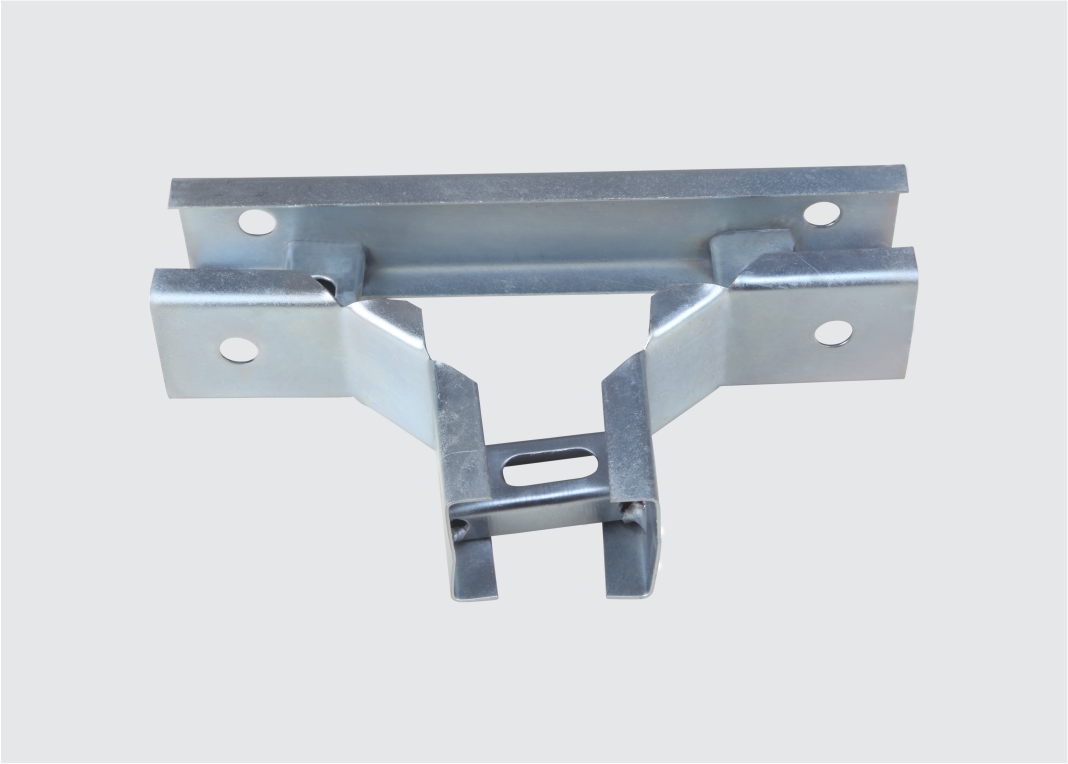

EQUAL TEE/UNEQUAL TEE :
Is suitable for joining Ladder trays in three different directions at Various degree intervals in the same plane. Our product design allows the cable to route properly and bend take care of cable not to worn out, peel off or get damage while laying of cables.
| Finish Products | ||
| Hotdeep Galvanized | : | As per IS-2626/2633/4759/6745 |
| Pre Galvanized | : | As per IS-277 |
| Powder Coating | : | As per IS-101 |
| Stainless Steel | : | As per Grade 304, 316 |
| Aluminium | : | Commercial Grade |
| Sizes | ||
| Channel Hight | : | 50x15mm, 75x15mm, 100x15mm, 150x15mm, 100x25mm, 150x25mm |
| Rungs Size | : | 35x15mm, 35x20mm, 40x15mm, 50x15mm |
| Radious | : | R300, R600, R1200 |
| Degree | : | 450, 600, 900 |
| Thikness | : | 1.6mm, 2mm, 2.5mm, 3mm |
| SWG | : | 16 14 12 10 |
EQUAL TEE/UNEQUAL TEE

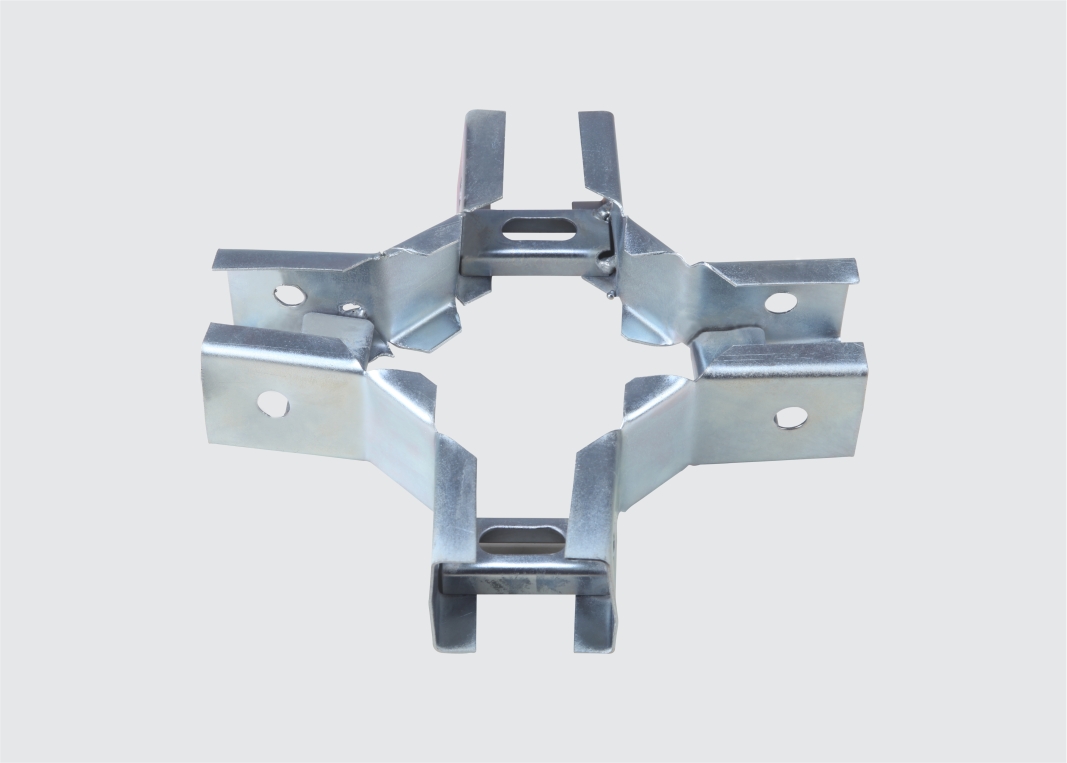

CROSS :
Are mainly use for laying the cable horizontally which allows the cable to route from 4 end ,Our product design allows the cable to route properly and bend take care of cable not to worn out, peel off or get damage while laying of cables.
| Finish Products | ||
| Hotdeep Galvanized | : | As per IS-2626/2633/4759/6745 |
| Pre Galvanized | : | As per IS-277 |
| Powder Coating | : | As per IS-101 |
| Stainless Steel | : | As per Grade 304, 316 |
| Aluminium | : | Commercial Grade |
| Sizes | ||
| Channel Hight | : | 50x15mm, 75x15mm, 100x15mm, 150x15mm, 100x25mm, 150x25mm |
| Rungs Size | : | 35x15mm, 35x20mm, 40x15mm, 50x15mm |
| Radious | : | R300, R600, R1200 |
| Degree | : | 450, 600, 900 |
| Thikness | : | 1.6mm, 2mm, 2.5mm, 3mm |
| SWG | : | 16 14 12 10 |
CROSS

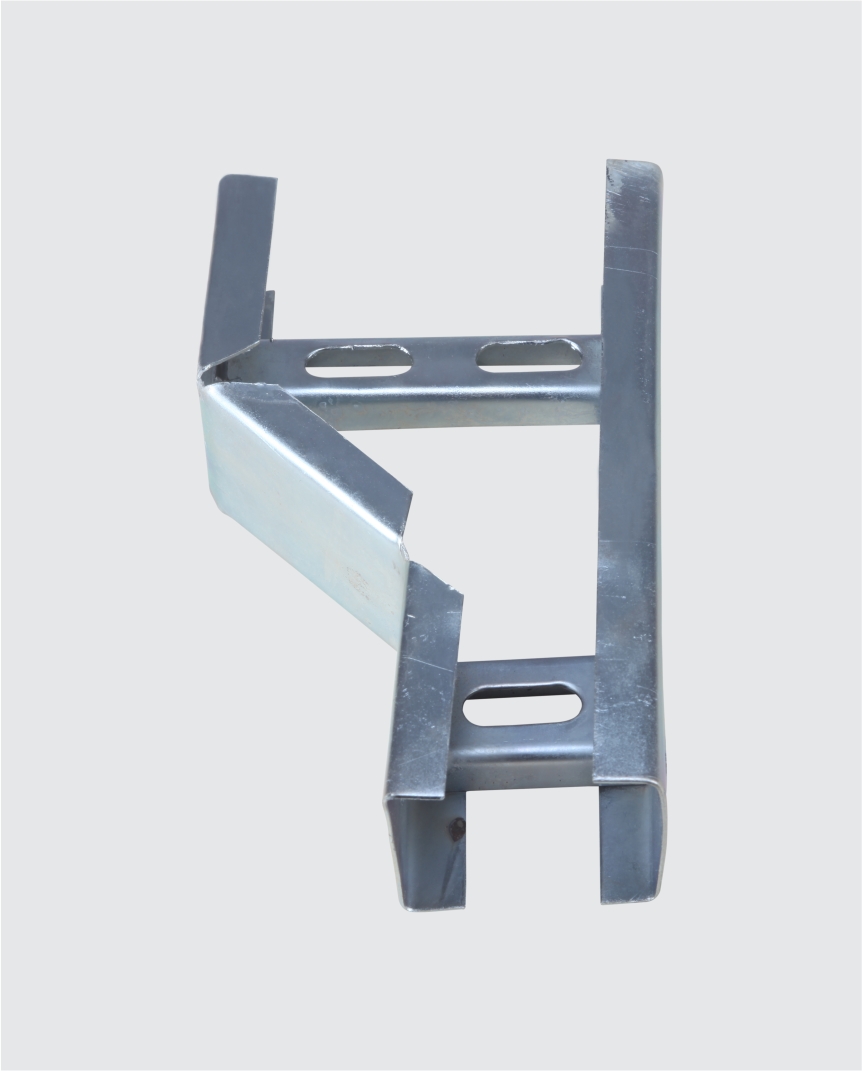

LEFT HAND REDUCERS :
Are mainly used in combination with Perforated type of cable tray for joining cable trays of different widths in the same plane. Our product design allows the cable to route properly and bend take care of cable not to worn out, peel off or get damage while laying of cables.
| Finish Products | ||
| Hotdeep Galvanized | : | As per IS-2626/2633/4759/6745 |
| Pre Galvanized | : | As per IS-277 |
| Powder Coating | : | As per IS-101 |
| Stainless Steel | : | As per Grade 304, 316 |
| Aluminium | : | Commercial Grade |
| Sizes | ||
| Channel Hight | : | 50x15mm, 75x15mm, 100x15mm, 150x15mm, 100x25mm, 150x25mm |
| Rungs Size | : | 35x15mm, 35x20mm, 40x15mm, 50x15mm |
| Radious | : | R300, R600, R1200 |
| Degree | : | 450, 600, 900 |
| Thikness | : | 1.6mm, 2mm, 2.5mm, 3mm |
| SWG | : | 16 14 12 10 |
LEFT HAND REDUCERS

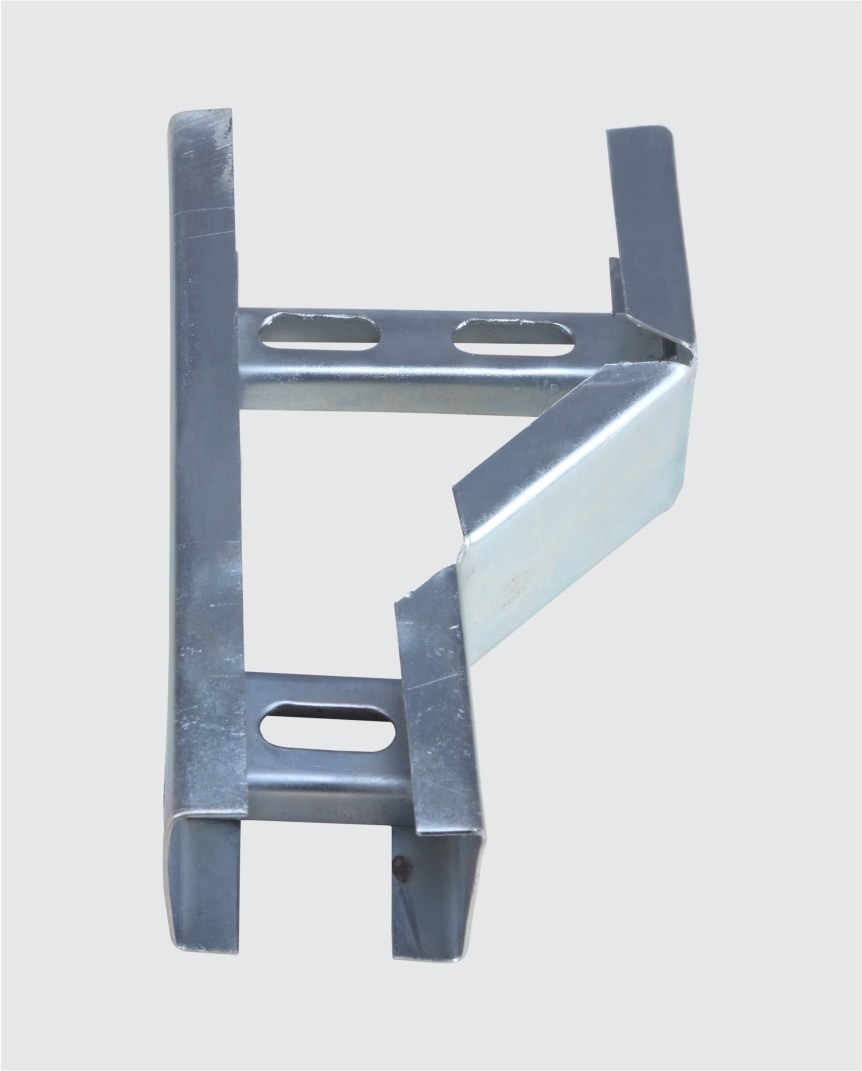

RIGHT HAND REDUCERS :
Are mainly used in combination with Perforated type of cable tray for joining cable trays of different widths in the same plane. Our product design allows the cable to route properly and bend take care of cable not to worn out, peel off or get damage while laying of cables.
| Finish Products | ||
| Hotdeep Galvanized | : | As per IS-2626/2633/4759/6745 |
| Pre Galvanized | : | As per IS-277 |
| Powder Coating | : | As per IS-101 |
| Stainless Steel | : | As per Grade 304, 316 |
| Aluminium | : | Commercial Grade |
| Sizes | ||
| Channel Hight | : | 50x15mm, 75x15mm, 100x15mm, 150x15mm, 100x25mm, 150x25mm |
| Rungs Size | : | 35x15mm, 35x20mm, 40x15mm, 50x15mm |
| Radious | : | R300, R600, R1200 |
| Degree | : | 450, 600, 900 |
| Thikness | : | 1.6mm, 2mm, 2.5mm, 3mm |
| SWG | : | 16 14 12 10 |
RIGHT HAND REDUCERS

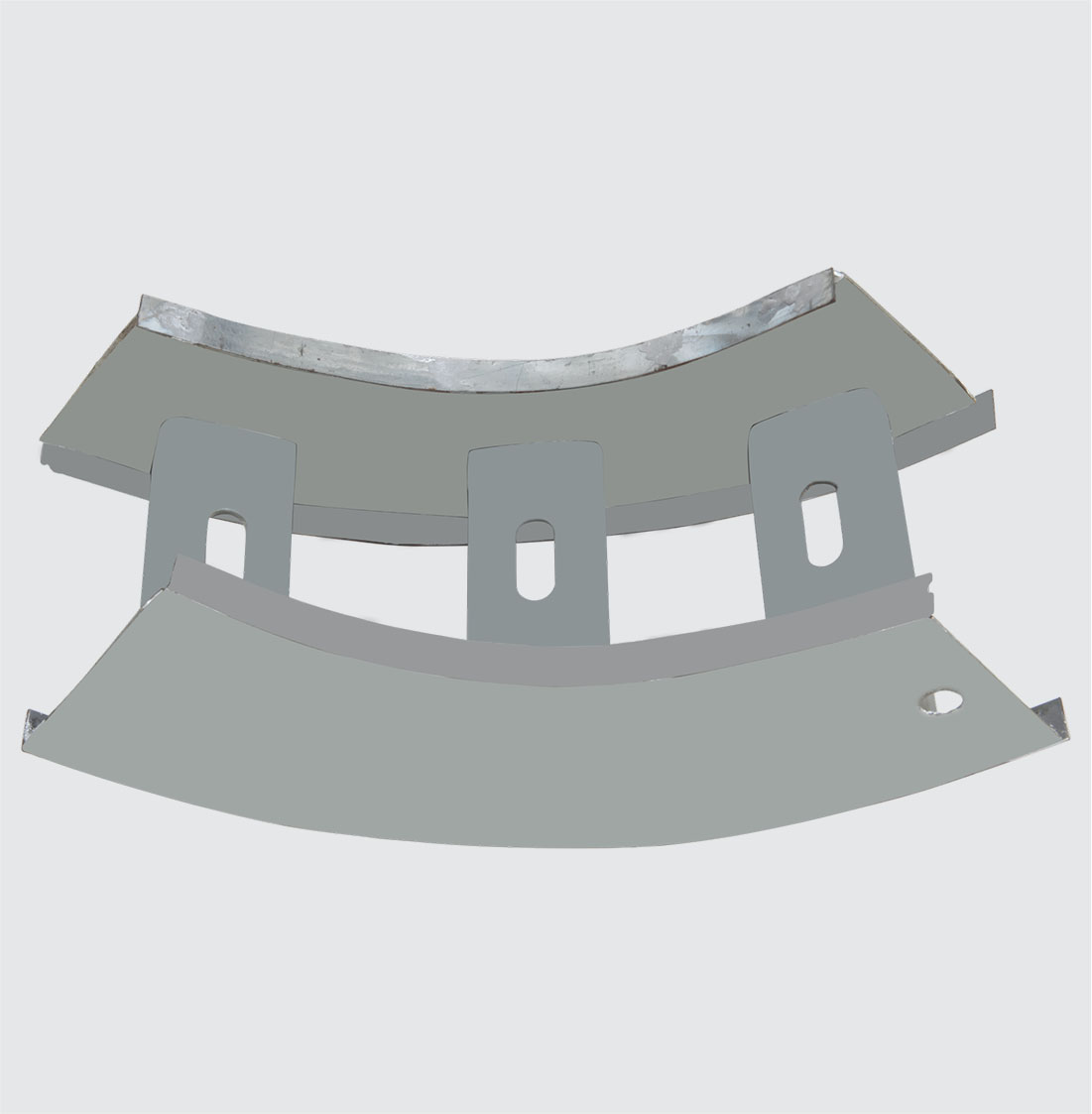

INSIDE RISER :
Are mainly use in combination with perforated type of cable trays to route. The cable where the direction changes to a different plane. Inside riser changes direction upward from the horizontal plane.
Our product design allows the cable to route properly and bend take care of cable not to worn out, peel off or get damage while laying of cables.
| Finish Products | ||
| Hotdeep Galvanized | : | As per IS-2626/2633/4759/6745 |
| Pre Galvanized | : | As per IS-277 |
| Powder Coating | : | As per IS-101 |
| Stainless Steel | : | As per Grade 304, 316 |
| Aluminium | : | Commercial Grade |
| Sizes | ||
| Channel Hight | : | 50x15mm, 75x15mm, 100x15mm, 150x15mm, 100x25mm, 150x25mm |
| Rungs Size | : | 35x15mm, 35x20mm, 40x15mm, 50x15mm |
| Radious | : | R300, R600, R1200 |
| Degree | : | 450, 600, 900 |
| Thikness | : | 1.6mm, 2mm, 2.5mm, 3mm |
| SWG | : | 16 14 12 10 |
INSIDE RISER

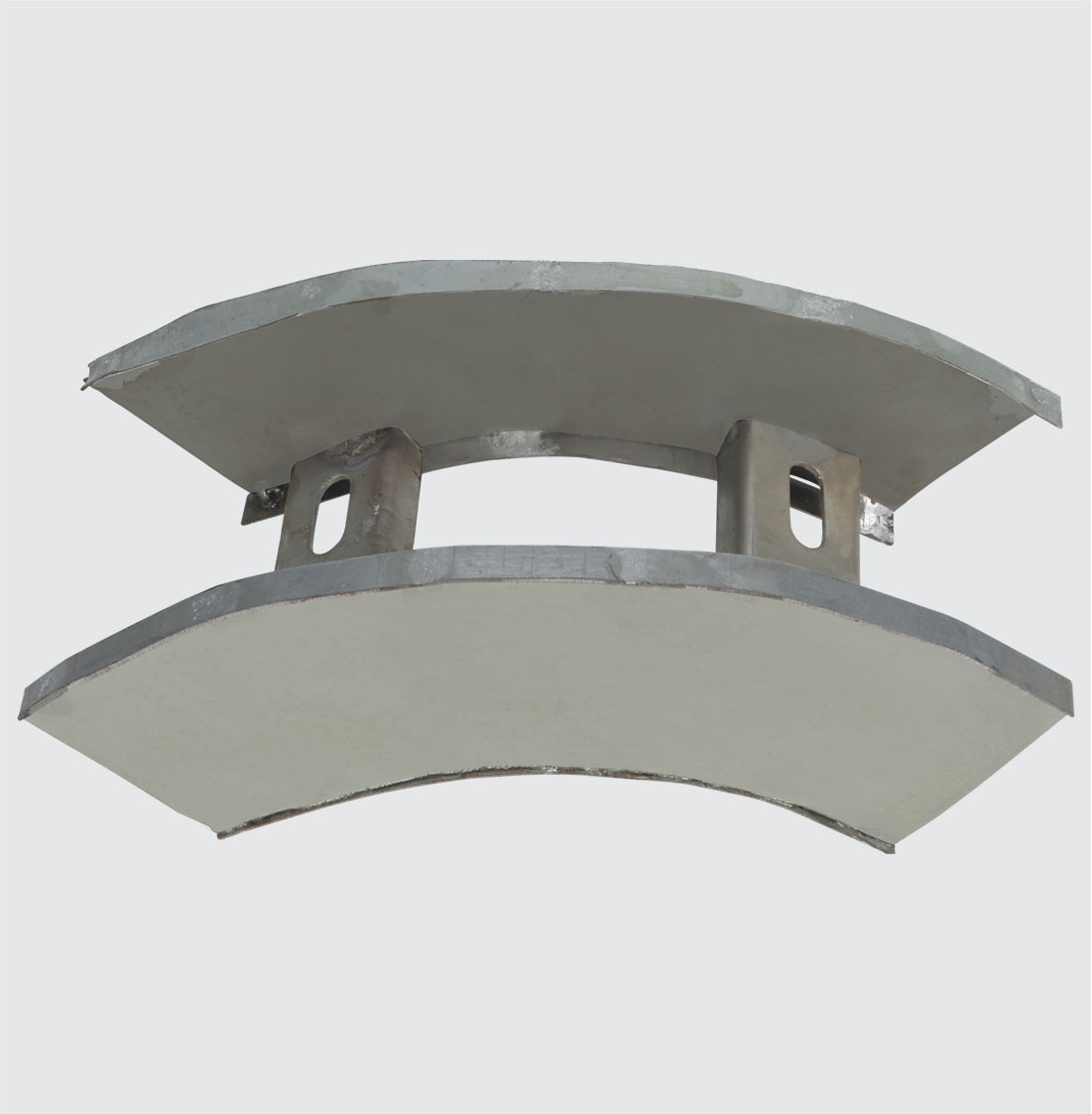

OUTSIDE RISER :
Are mainly use in combination with perforated type of cable trays to route. The cable where the direction changes to a different plane. Outside riser changes direction downward from the horizontal plane. Our product design allows the cable to route properly and bend take care of cable not to worn out, peel off or get damage while laying of cables.
| Finish Products | ||
| Hotdeep Galvanized | : | As per IS-2626/2633/4759/6745 |
| Pre Galvanized | : | As per IS-277 |
| Powder Coating | : | As per IS-101 |
| Stainless Steel | : | As per Grade 304, 316 |
| Aluminium | : | Commercial Grade |
| Sizes | ||
| Channel Hight | : | 50x15mm, 75x15mm, 100x15mm, 150x15mm, 100x25mm, 150x25mm |
| Rungs Size | : | 35x15mm, 35x20mm, 40x15mm, 50x15mm |
| Radious | : | R300, R600, R1200 |
| Degree | : | 450, 600, 900 |
| Thikness | : | 1.6mm, 2mm, 2.5mm, 3mm |
| SWG | : | 16 14 12 10 |
